Products details

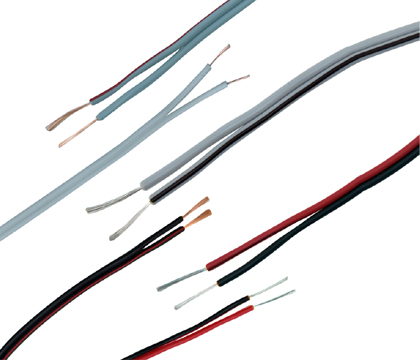

We produce speaker cables with finely stranded high grade oxygen free copper (OFC), Tinplated Copper (TC) and Annealed Bare Copper (ABC) as Conductors to give dynamic sound performance.
Used for connecting hi-end audio systems, professional audio equipments & PA systems for clear and distortion free signal with low dB loss.
For Transparent Speaker Wire:
| Sr.No. | No. of Strands (SWG) | Cond. Size(in mm) | Overall Dia. (in mm) | Cross Sec. Area (in mm2) | Max. Conductor Resistance (ohm/km)at 20°c |
|---|---|---|---|---|---|
| 1 | 10/42 | 0.102 | 1.8 X 3.6 | 0.082 | 236.2 |
| 2 | 14/42 | 0.102 | 1.9X 3.8 | 0.114 | 168.7 |
| 3 | 14/40 | 0.122 | 2X4 | 0.164 | 117.9 |
| 4 | 14/38 | 0.152 | 2.3 X 4.6 | 0.2542 | 67.90 |
| 5 | 23/38 | 0.152 | 2.5 X 5 | 0.4176 | 41.33 |
| 6 | 23/36 | 0.193 | 3 X 6 | 0.6733 | 25.64 |
| 7 | 40/36 | 0.193 | 3.5 X 7 | 1.1711 | 14.74 |
| 8 | 70/36 | 0.152 | 4 X 8 | 2.050 | 9.42 |
For Twin - Parallel Wire:
| Sr.No. | No. of Strands (SWG) | Cond. Size(in mm) | Overall Dia. (in mm) | Cross Sec. Area (in mm2) | Max. Conductor Resistance (ohm/km)at 20°c |
|---|---|---|---|---|---|
| 1 | 7/39 | 0.132 | 1.3 X 2.6 | 0.096 | 201.5 |
| 2 | 7/38 | 0.152 | 1.4 X 2.8 | 0.127 | 152 |
| 3 | 10/42 | 0.102 | 1.8 X 3.6 | 0.082 | 236.2 |
| 4 | 14/42 | 0.102 | 1.9X 3.8 | 0.114 | 168.7 |
| 5 | 14/40 | 0.122 | 2X4 | 0.164 | 117.9 |
| 6 | 14/38 | 0.152 | 2.3 X 4.6 | 0.2542 | 67.9 |
| 7 | 14/36 | 0.193 | 2.5 X 5 | 0.41 | 47.1 |
| 8 | 23/39 | 0.132 | 2.5 X 5 | 0.315 | 61.3 |
| 9 | 23/36 | 0.193 | 3 X 6 | 0.6733 | 25.64 |
| 10 | 40/36 | 0.193 | 3.5 X 7 | 1.1711 | 14.74 |
| 11 | 70/36 | 0.152 | 4 X 8 | 2.050 | 9.42 |
