Products details

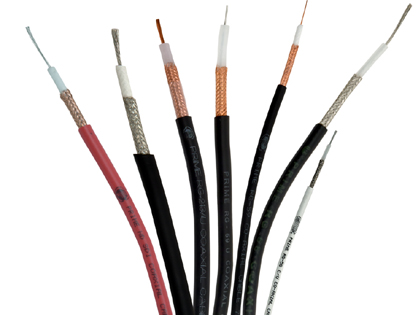

Solid copper center conductor, dielectric of solid Pe or foam Pe, Al.foil shield, bare copper or tin copper braiding 95% coverage & overall PVC sheath, mainly used for transmission of RF signal.
The Coaxial Cables are not only the most used cables but the least expensive one in the market. These cables are very reliable, convenient and have easily maintained way of transferring images in a CCTV system.
| Cable Type | Conductor Size (MM) |
Dia over Dielectric (MM) |
O.D. (MM) |
Impedance (PF/Ft) |
Attenuation at 200
MHz (dB/100M) |
Max R.F. operating
voltage (Kv) |
Capacitance (PF/Ft) |
|---|---|---|---|---|---|---|---|
| RG - 59 B/U | 0.58 | 3.7 | 6.1 | 75 | 16 | 2.3 rms | 21.1 |
| RG - 59/U | 0.63 | 3.7 | 6.2 | 73 | 16 | 2.3 rms | 20.6 |
| RG - 6/U | 1.04 | 4.6 | 7 | 75 | 9 | 2.7 rms | 20 |
| RG - 11 | 1.61 | 7.1 | 10.3 | 75 | 6 | 5.0 rms | 20.6 |
| RG - 11 A/U | 7/0.41 | 7.25 | 10.3 | 75 | 11 | 5.0 rms | 20.6 |
| RG - 174/U | 7/0.16 | 1.5 | 2.5 | 50 | 40 | 1.5 rms | 30.5 |
| RG - 58/U | 0.81 | 2.95 | 5 | 53.5 | 23 | 1.9 rms | 28.8 |
| RG - 58 C/U | 19/0.18 | 2.95 | 5 | 50 | 24 | 1.9 rms | 29.6 |
| RG - 223/U (RG-55 A/U) |
0.06 | 2.95 | 5.5 | 50 | 20 | 1.9 rms | 19.8 |
| RG - 213 /U (RG-8A/U) |
7/0.75 | 7.25 | 10.3 | 50 | 11 | 5.0 rms | 30.8 |
| RG - 214 /U (RG-9B/U) |
7/0.75 | 7.25 | 10.8 | 50 | 11 | 5.0 rms | 30.8 |
