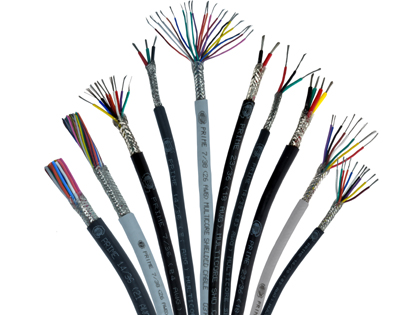

Multistrand tin copper conductors, pvc insulated cores,(2-50 cores) laying together to form a bunch, polyester myler taped, tin copper braided 85% coverage & overall pvc sheathed cables used for low voltage application, signal, voice & data transmission.

We provide maximum coverage of copper breeding, which helps in good connection and clear signal.

We are involved in manufacturing and supplying wide range of shielded cables that is used in process control application. These are developed keeping in mind the safe interconnection of switching system equipment and plant automation. We provide marking on the cores so that it can be easy at the time of their connections.



No. of Strands SWG 7/38 7/36 14/38 14/36 23/36
Size 26 AWG 24 AWG 23 AWG 21 AWG 18 AWG
Cross sec. area (in mm2) 0.127 0.2 0.24 0.41 0.67
Max. Conductor Resistance (ohm/km) at 20°c 152.7 94.7 76.4 47.4 28.8
No. of Core Overall diameter (in mm)
2 3.4 4.4 5.1 5.9 6.4
3 4.4 4.5 5.2 6.2 6.8
4 4.7 5 5.7 6.4 7.5
5 4.9 5.3 6 6.9 --
6 5.1 5.7 6.4 7.5 --
8 5.9 6.3 7.3 8.3 --
9 6 6.6 7.6 -- --
10 6.4 6.9 8.2 10.1 --
12 6.8 7.3 8.8 10.5 --
16 7.5 7.9 -- -- --
18 8 8.2 -- -- --
20 8.5 8.8 -- -- --
25 9 9.4 -- -- --
40 11 11.5 -- -- --
50 11.6 13.2 -- -- --




Applications:
  • Electronic weighing scale.
  • Electronic equipments.
  • Computers.
  • Medical instruments.
  • Data transmission.
Features:
  • Cores are provided with proper marking.
  • More than 85% coverage of copper breeding.
  • Available in prolonged lengths of 500 to 1000mtr.
