Products details

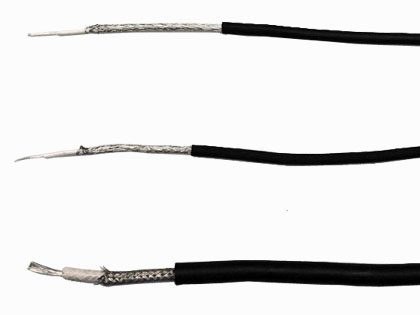

Microphone cable is used for connecting flow level microphones or musical instruments. Key properties of microphone cable are ruggedness, flexibility, flex life and interference immunity.
Fine gauge soft bare or tin copper conductor, Pe insulated core, twisted to form a pair, cotton thread filler, bare or tin copper braided 90% coverage & overall ultra soft PVC sheathed used for audio signal transmission, stage shows & p.a. equipments.
| Sr.No. | No. of Core |
No. of Strands SWG |
Cond. Size (in mm) |
Overall Dia. (in mm) |
Cross Sec. Area (in mm2) |
Max. Conductor Resistance (ohm/km) at 20°c |
|---|---|---|---|---|---|---|
| 1 | 1 | 40/42 ABC | 0.102 | 5.5 | 0.182 | 77.66 |
| 2 | 1 | 40/40 ABC | 0.122 | 5.5 | 0.4679 | 36.89 |
| 3 | 1 | 14/36 ATC | 0.193 | 5.5 | 0.4098 | 42.12 |
| 4 | 1 | 23/36 ATC | 0.193 | 5.5 | 0.673 | 28.7 |
| 5 | 1 | 36/36 ATC | 0.193 | 6 | 1.122 | 17.4 |
| 6 | 2 | 19/42 ABC | 0.102 | 6 | 0.1553 | 111.11 |
| 7 | 2 | 19/40 ABC | 0.122 | 6.1 | 0.2222 | 77.66 |
| 8 | 2 | 14/36 ATC | 0.193 | 6.2 | 0.4098 | 42.12 |
| 8 | 2 | 23/36 ATC | 0.193 | 6.3 | 0.673 | 28.7 |
